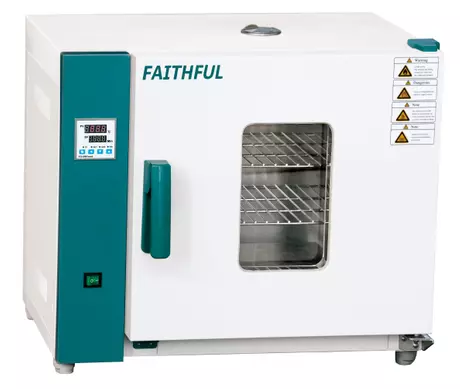

Drying Oven

Function
Temp. Range RT+10-250ºC
Temp. Resolution Ratio 0.1ºC
Temp. Motion ±1ºC
Temp. Uniformity ±2.5%

Structure
Inner Chamber B model: High quality stainless steel
without B model: High strength galvanized sheet

Outer Shell: Cold rolling steel electrostatic spraying exterior
Insulation layer: High quality rock wool board(with CE)
Heater: 101 model with Stainless steel electric heating tube;
202 model with Nickel chromium alloy heating wire

Power rating: 1.6kW
Exhaust hole: φ28mm top(with function of test hole)
Controller: Temp. control mode Two temperature section PID intelligent
Temp. setting mode: Touch button setting
Temp. display mode: LED Digital display
Timer: 0-9999min(with timing wait function)
Operation function: Fixed temperature operation, timing function, auto stop.
Additional function: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory Sensor PT100
Safety device Over temperature sound-light alarm
Specification Inner Chamber size(W*L*H)(mm): 550*450*550
Exterior size (W*L*H)(mm): 852*572*786
Packing size (W*L*H)(mm): 955*715*935
Volume 136L
Shelf number 17
Load per rack 15kg
Shelf space 25mm (50/60HZ)Current rating AC220V/9.1A
NW/GW (kg) 62/68
Accessory Shelf 2
Shelf frame 4
