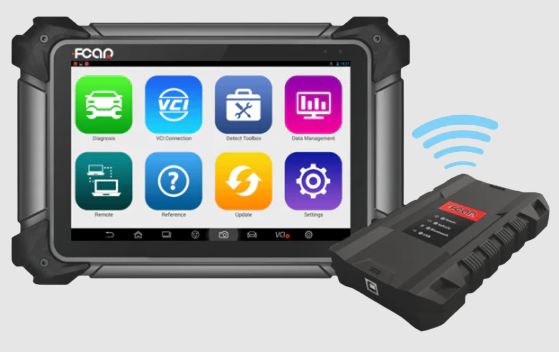

Engine Analyzer / Diagnostic Scanner

Features:

• Based on Android system, equipped with Wi-Fi and Bluetooth.
• Fast booth-up and multitasking.
• Support powertrain, body, chassis and other systems.
• Fast scan
• Automatically identify vehicles and systems.
• Support one key update/recognition/feedback.
• Support freeze frame data.
• Support multi language.
• Team Viewer remote supported.
• Support diagram wiring, technical information, diagnostic solutions and maintenance services.
• Support multimedia entertainment, instant messaging and data sharing.
• Extensive vehicle coverage: Over more than 80 Asian, American and European passenger cars, LCV, SUV, Van.
• Compatible with latest vehicle models.
• Support key coding/long coding.
• 14 kinds of powerful bidirectional special functions.

F7S-W Parameters:
Tablet CPU: Free scale Semiconductor (Quad-core), I.MX6Q, 1.83GHz
Operation System: Android 10.0
Screen Size: 10.1′, 16:10 IPS display 1280 x 800

Storage Capacity:
RAM: 2GB
ROM: 32GB

WIFI: WIFI 802.11(a/b/g/n)
Frequency 2.4G+5.8G dual band WIFI
Bluetooth: BT4.0 (BLE) class1 transmission distance:10m
Battery: Lithium-ion polymer battery, 3.7V/10000mAh

Operate Temperature: -10 °C to 50 °C/14 °F to 122 °F
Store Temperature: -30 °C to 70 °C/-4°F to 140 °F

Engine Analyzer
